Description

It’s back! The Future was 8bit Deluxe Composite Video Mod Kit (Atari etc).. & also the Micro PCB

Works with PAL and NTSC 2600/7800 etc

No more crappy RF signal to deal with

Simple to install, but does require soldering skills

Deluxe Composite mod is modular, supplied as PCB + 2 pre-made cables neat installs.

I’ll be adding guides for other models in the Future

Installs are basically the same as the old unit. Updates to install guides coming soon

 ** Tynemouth Software Blog covering installation of Deluxe mod Atari Consoles **

The Deluxe Composite Mod replaces the old PCB mod – WIRE COLOURS HAVE CHANGED

In all cases, you need to disconnect or remove your existing RF Modulator

Please only modify working systems – always test on RF before modification. We cannot help you diagnose your own faulty kit.

Prior to modification if you require support/guidance, please take a photos of your UNMODIFIED PCB and email them to support@thefutu… and we’ll happily guide you before you screw things up ;D

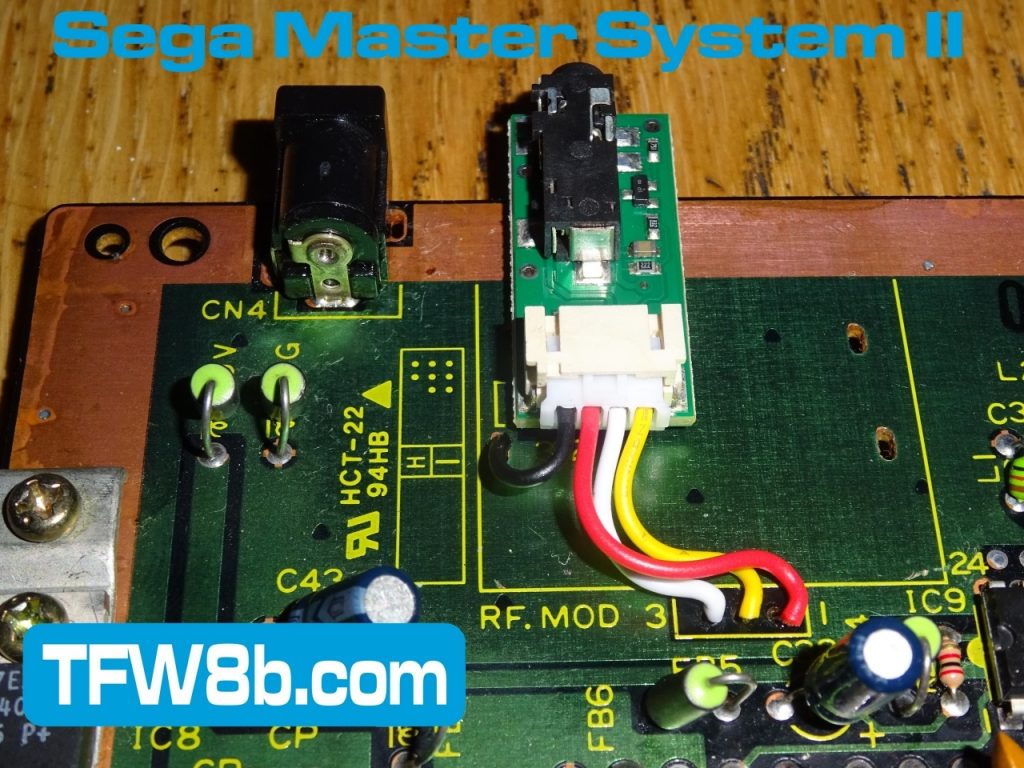

Legacy PCB         Deluxe

RED                RED – 5v

GREEN           BLACK – 0v

BROWN          WHITE – Audio

YELLLOW       YELLOW – Video

Legacy/PCB Installs

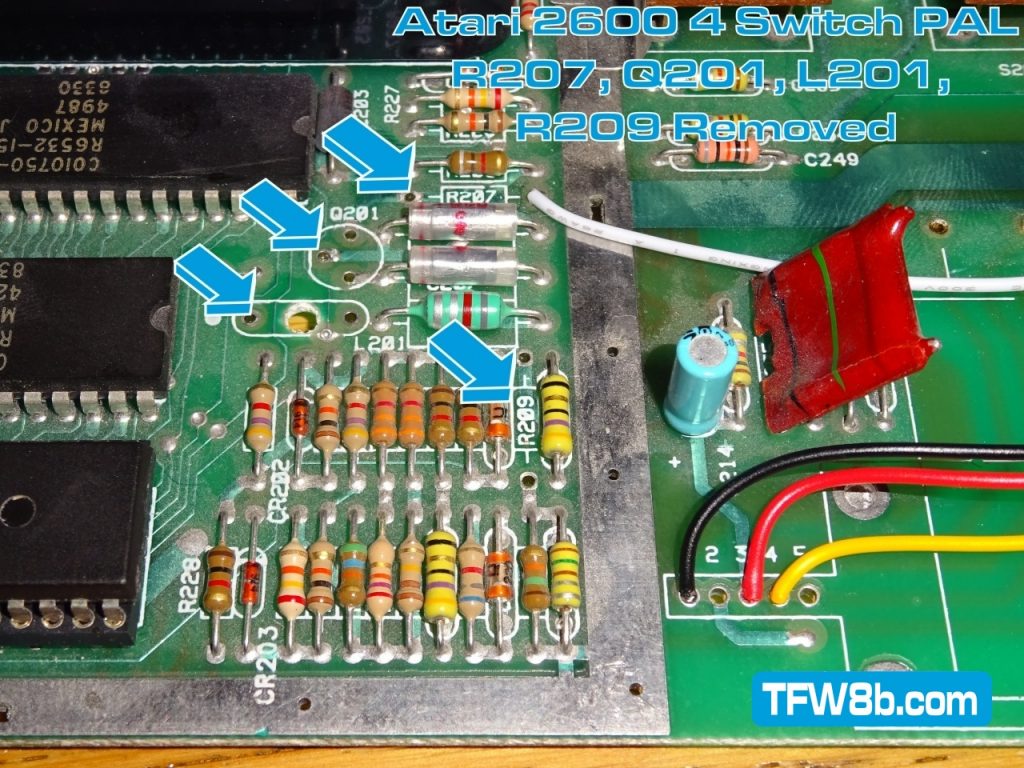

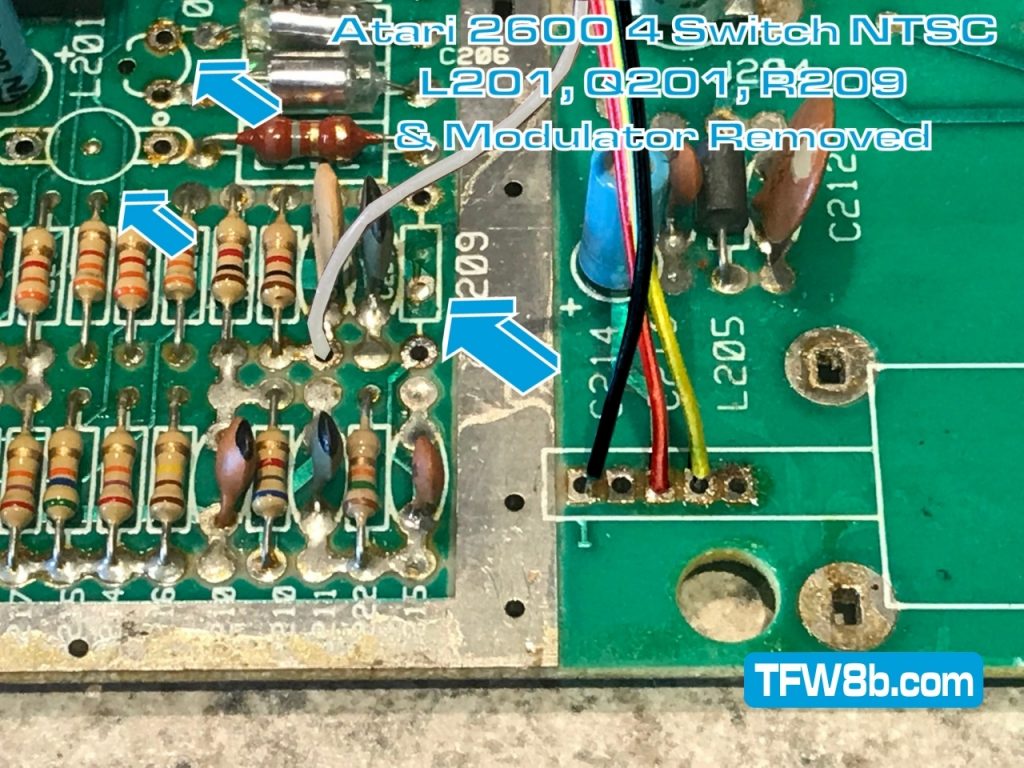

 2600 (4 switch) PAL/NTSC

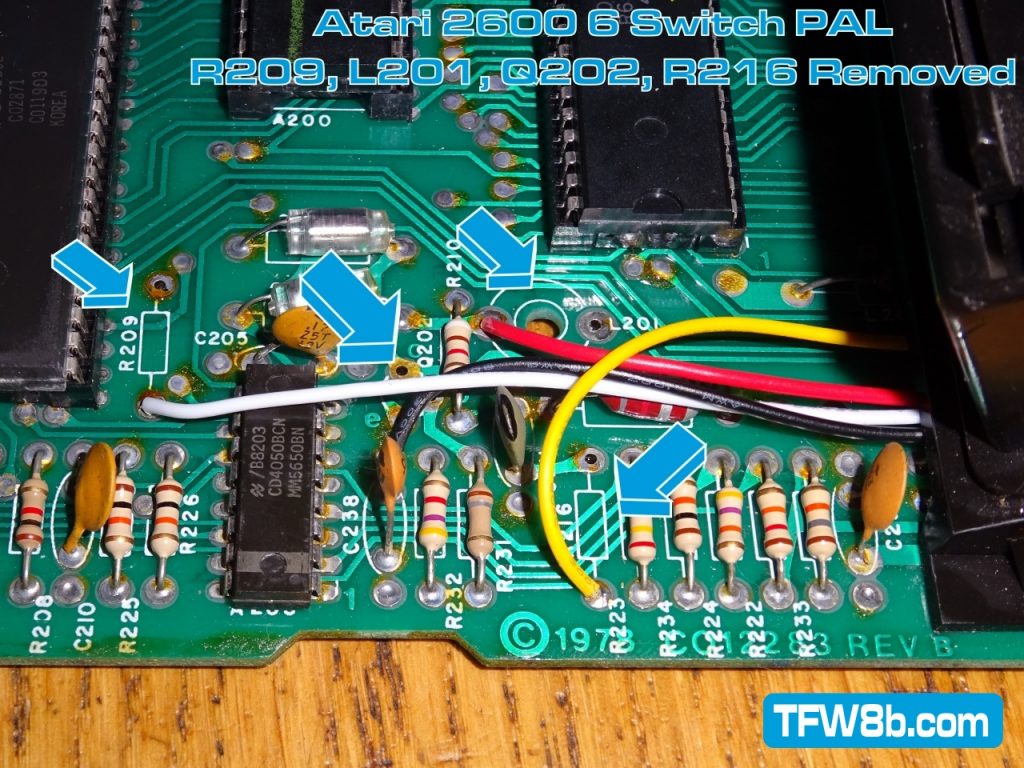

2600 (6 Switch) PAL

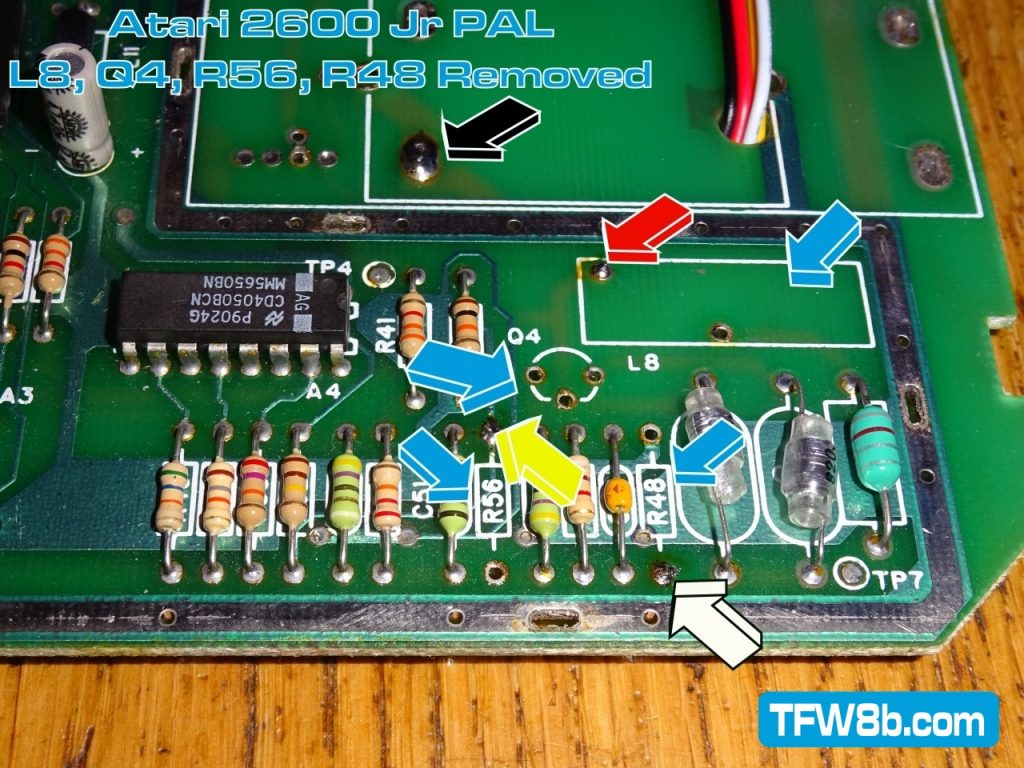

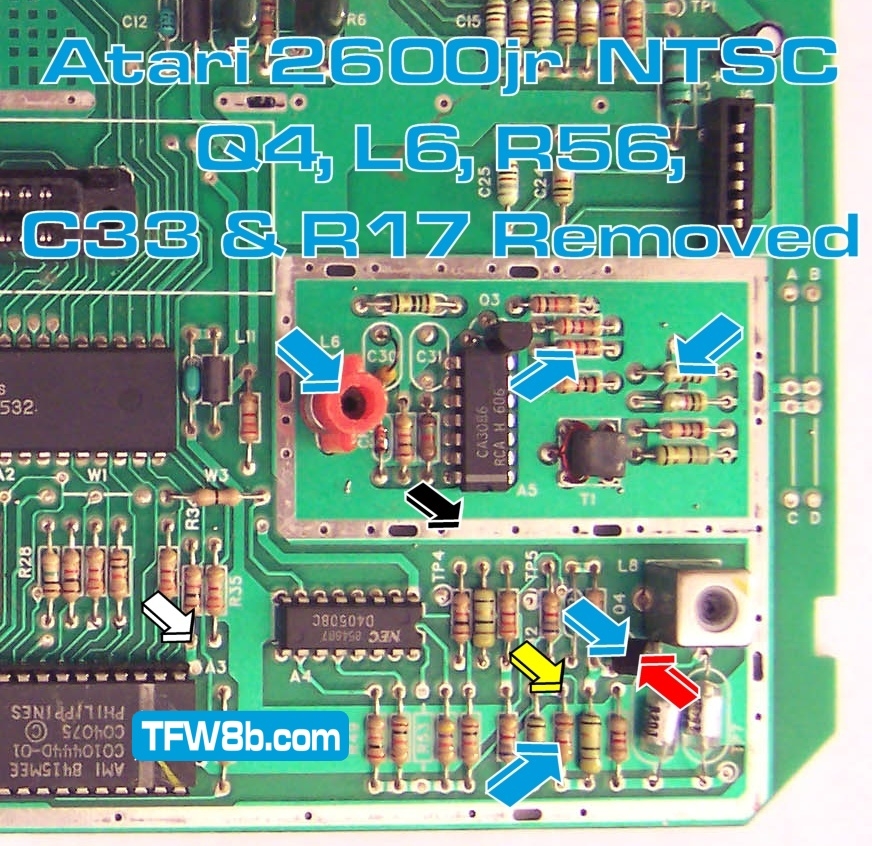

2600jr PAL/NTSC

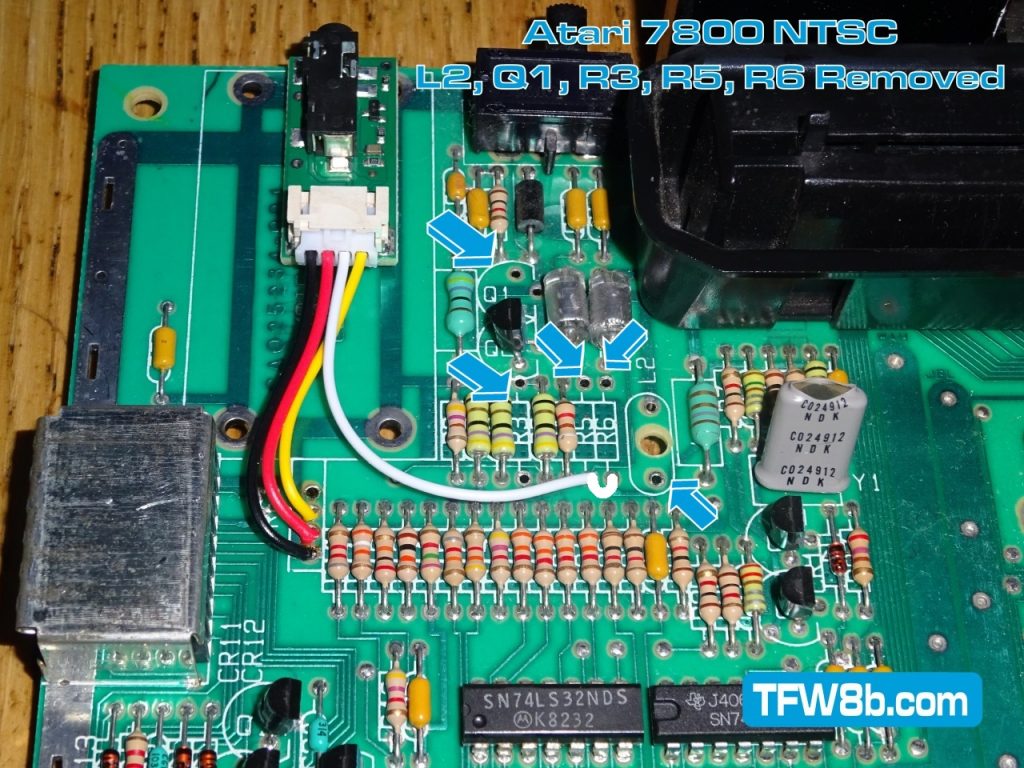

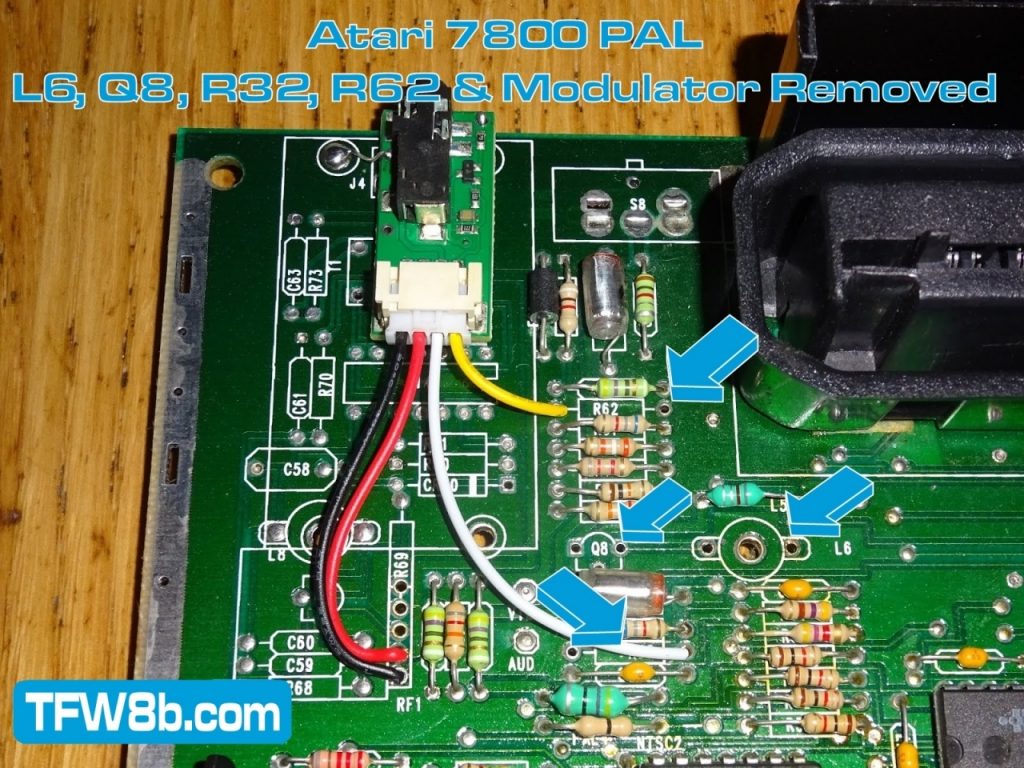

7800 PAL

Sinclair ZX81

World of Jani – Philips P2000T

World of Jani – Philips G7000

How hard can it be? Well, the YouTube clip above is from a real customer @DarkBlueMonkey installing the Deluxe Mod into his Atari 2600jr #Spoiler
